Solid Block by Chelsea Concrete

Blocks

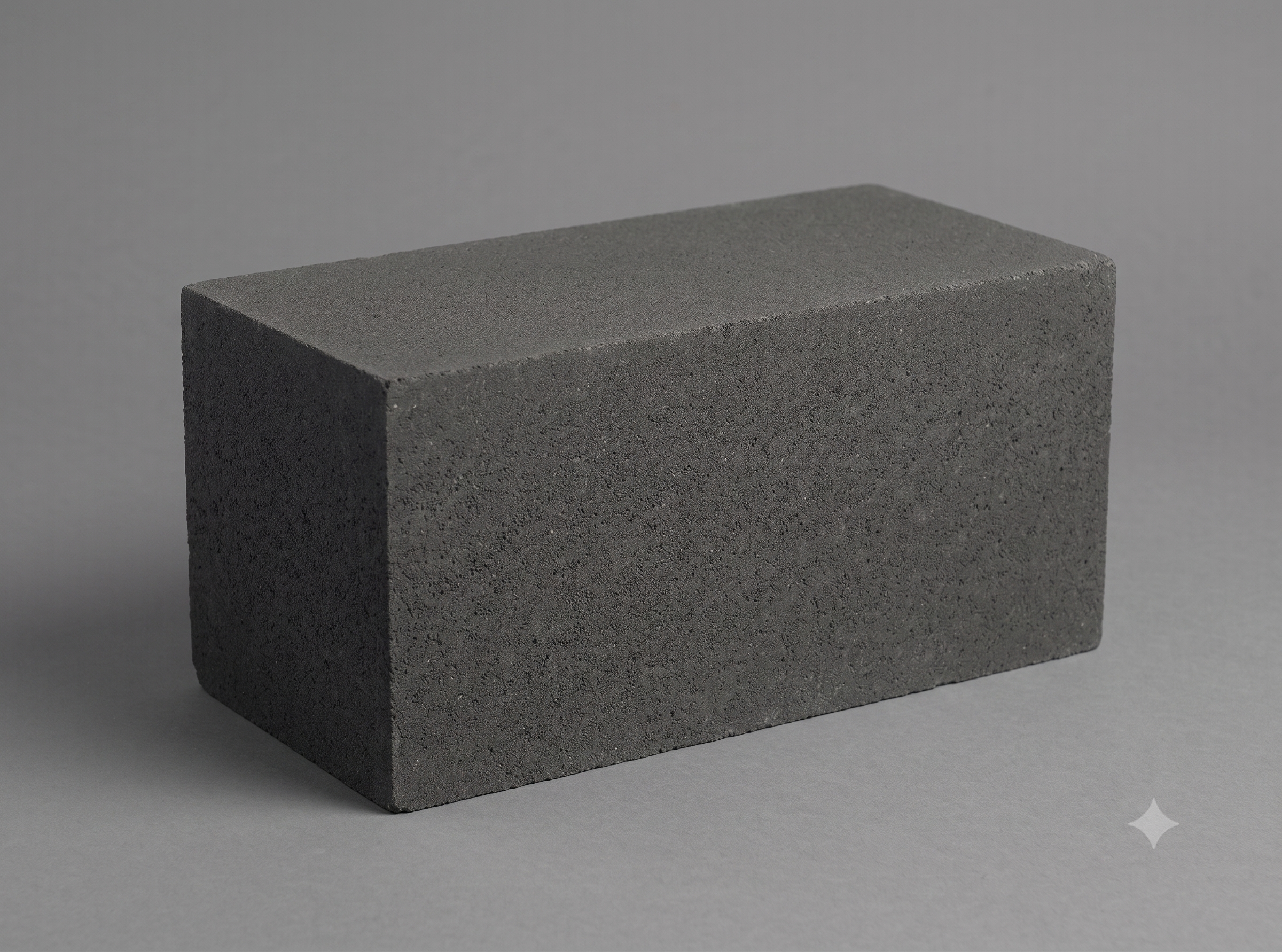

Solid Block

Strong solid concrete for walls & boundaries

Dense, dimensionally accurate solid concrete blocks for load-bearing walls and boundary walls. Accurate sizes mean thinner mortar joints and less plaster.

Specifications

Category
Blocks
Thickness / size
100 / 150 / 200 mm widths
Finish
Fair-faced
Standard
IS 2185 (Part 1)
Strength grade
Load-bearing and non-load-bearing grades
Quality control
25 checks per batch, test report on request
Packing & delivery
Strapped pallets, crane-unloaded at site
Manufactured at
IMT Bawal, Haryana (own plant)

Delivered on our own crane-mounted trucks, 96%+ on time, unloaded at site with no labour needed. Supplier profile

Best for

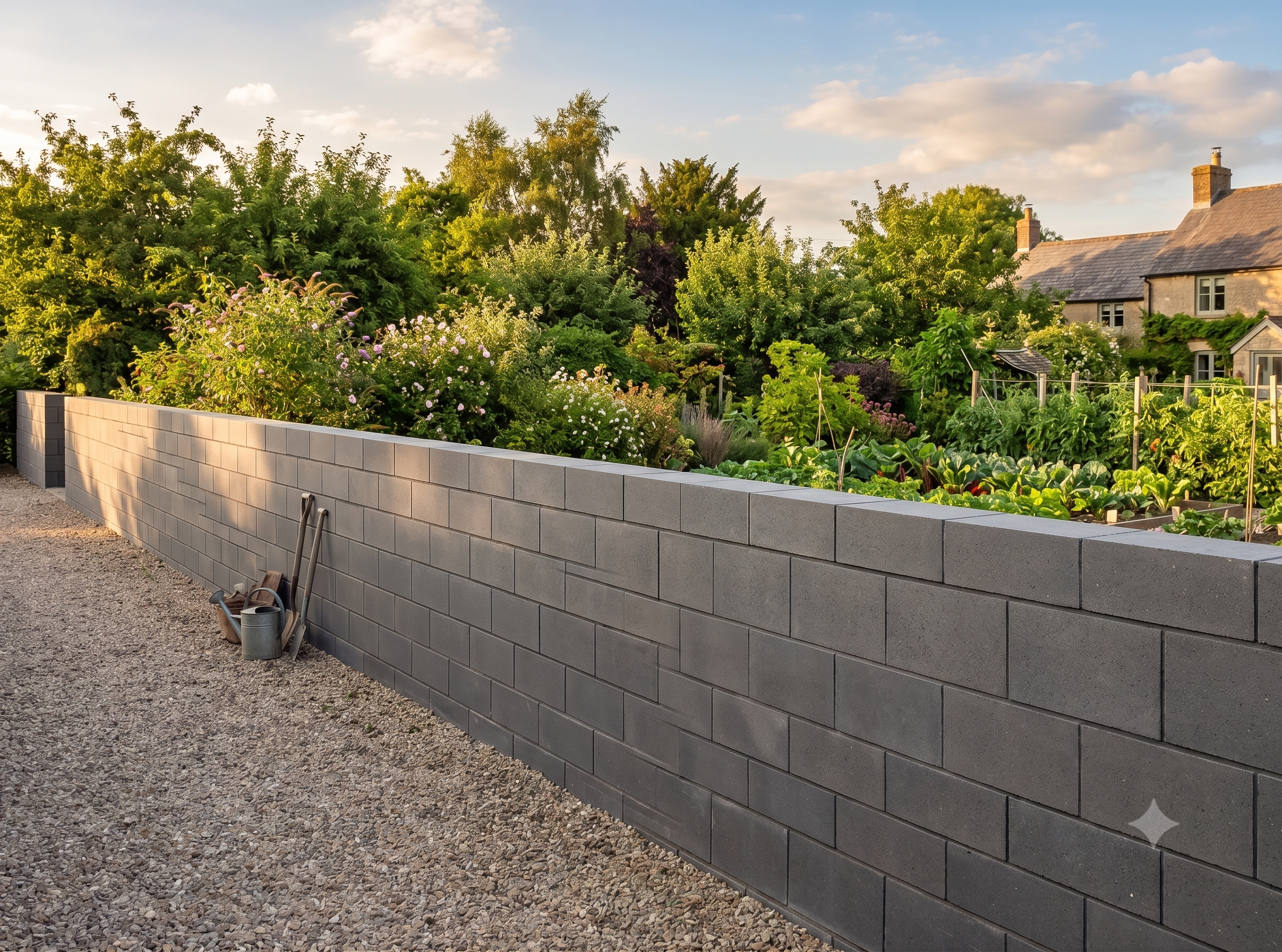

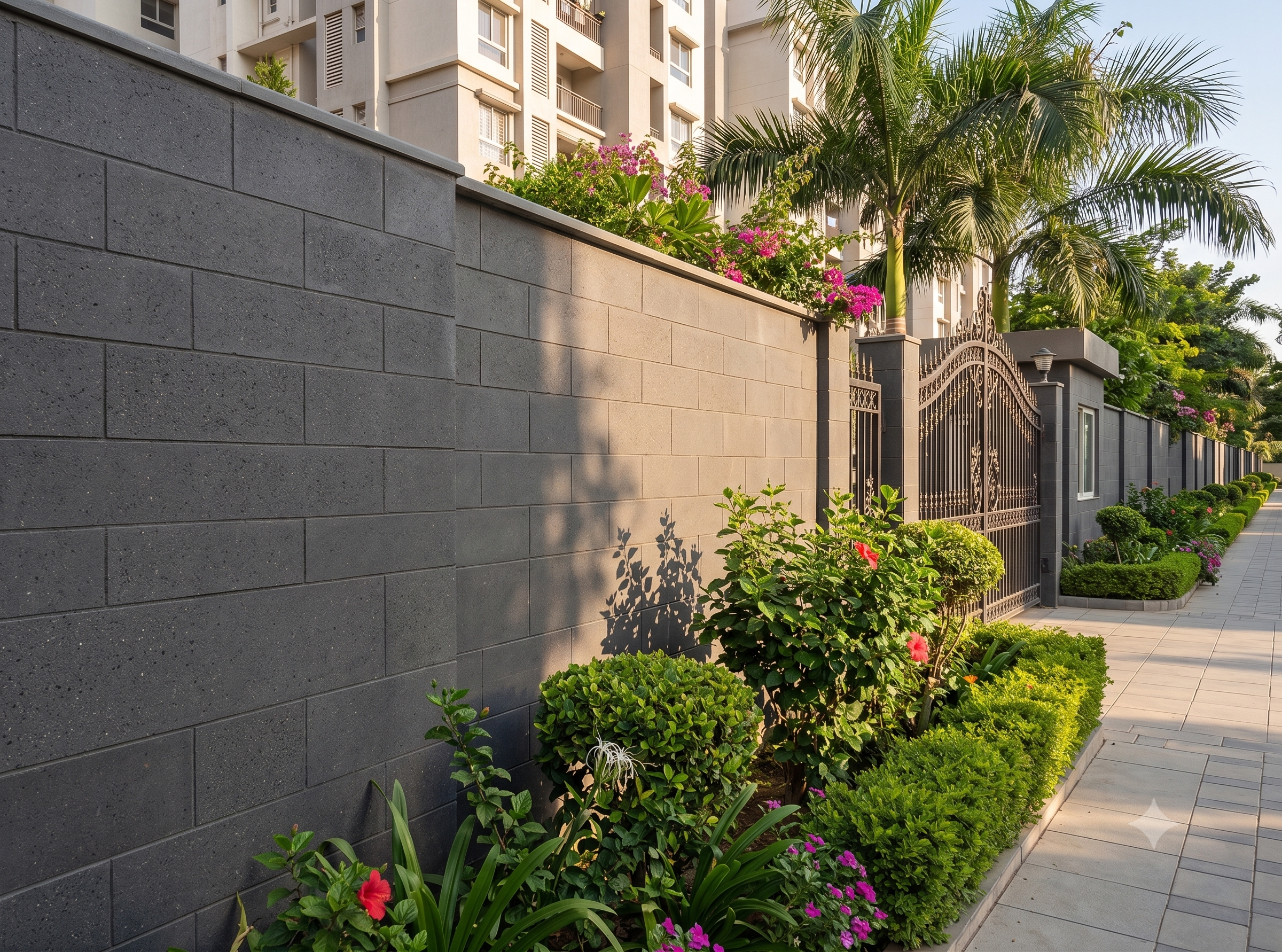

  • Boundary walls
  • Load-bearing walls
  • Plinths

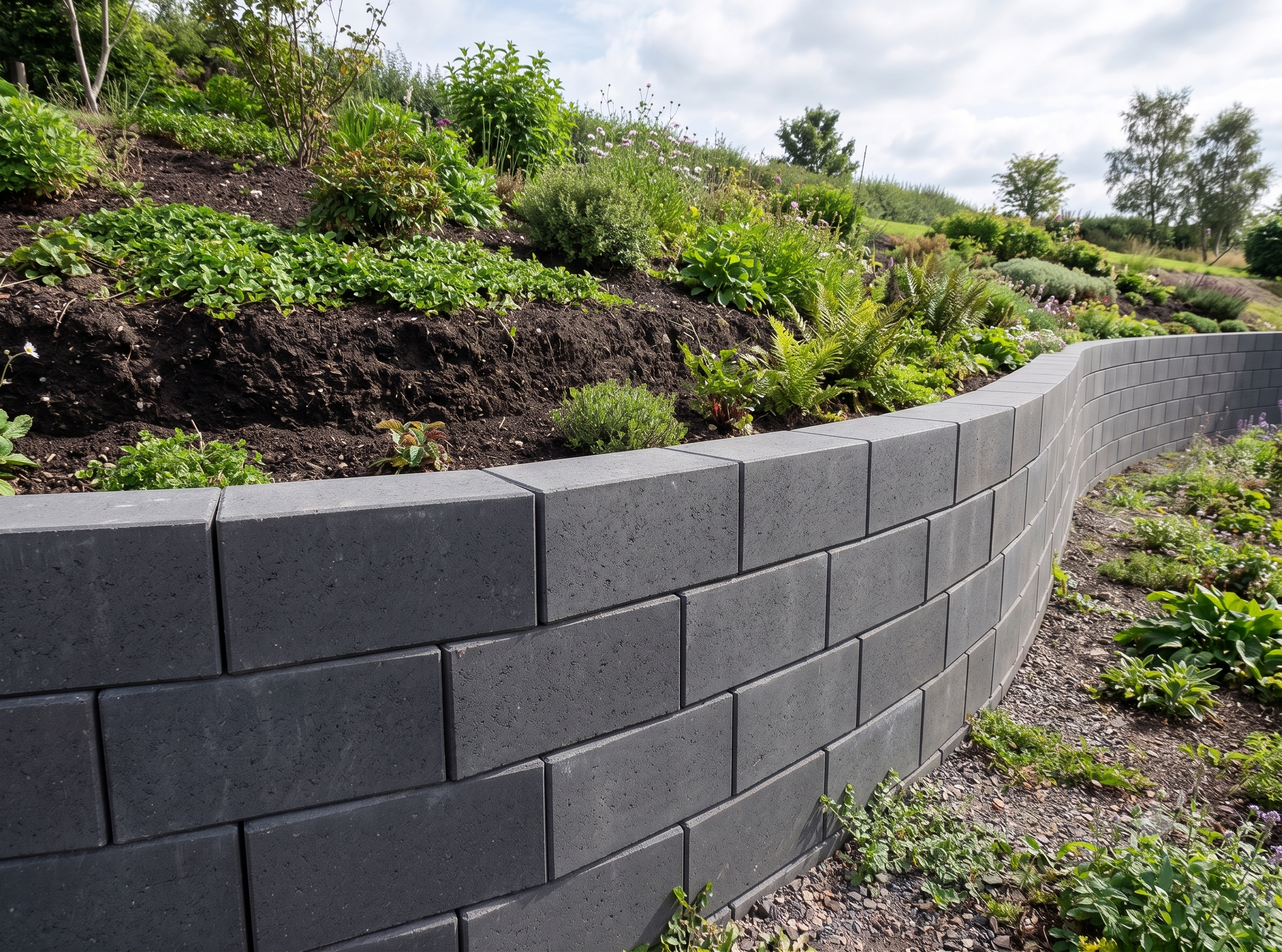

  • Retaining walls

Expert tip from our site team

Never lay blocks wet from the curing yard or soaked like clay bricks. Concrete blocks shrink as they dry — lay them surface-dry to avoid wall cracks.

Enquire about Solid Block on WhatsApp(opens WhatsApp)

Pricing, colours and delivery — usually answered same day.

Technical drawing

Solid Block dimensional layout

Front, end and plan elevations with the running-bond wall pattern for site planning and quantity take-offs. Manufactured to IS 2185.

Solid concrete block dimensional layout: front and end elevations of the 8 inch 400x200x200 mm block, plan and elevations of the 4 inch 400x100x200 mm block, and a running bond wall elevation with 10 mm joints(opens full-size drawing in a new tab)
All dimensions in millimetres. Click the drawing to view full size.

Key dimensions

8" solid block
400 × 200 × 200 mm
4" solid block
400 × 100 × 200 mm
Mortar joint
10 mm
Concrete
M15 / M20 equivalent
Laying pattern
Running bond
