Saucer Drain by Chelsea Concrete

Kerbs & Drainage

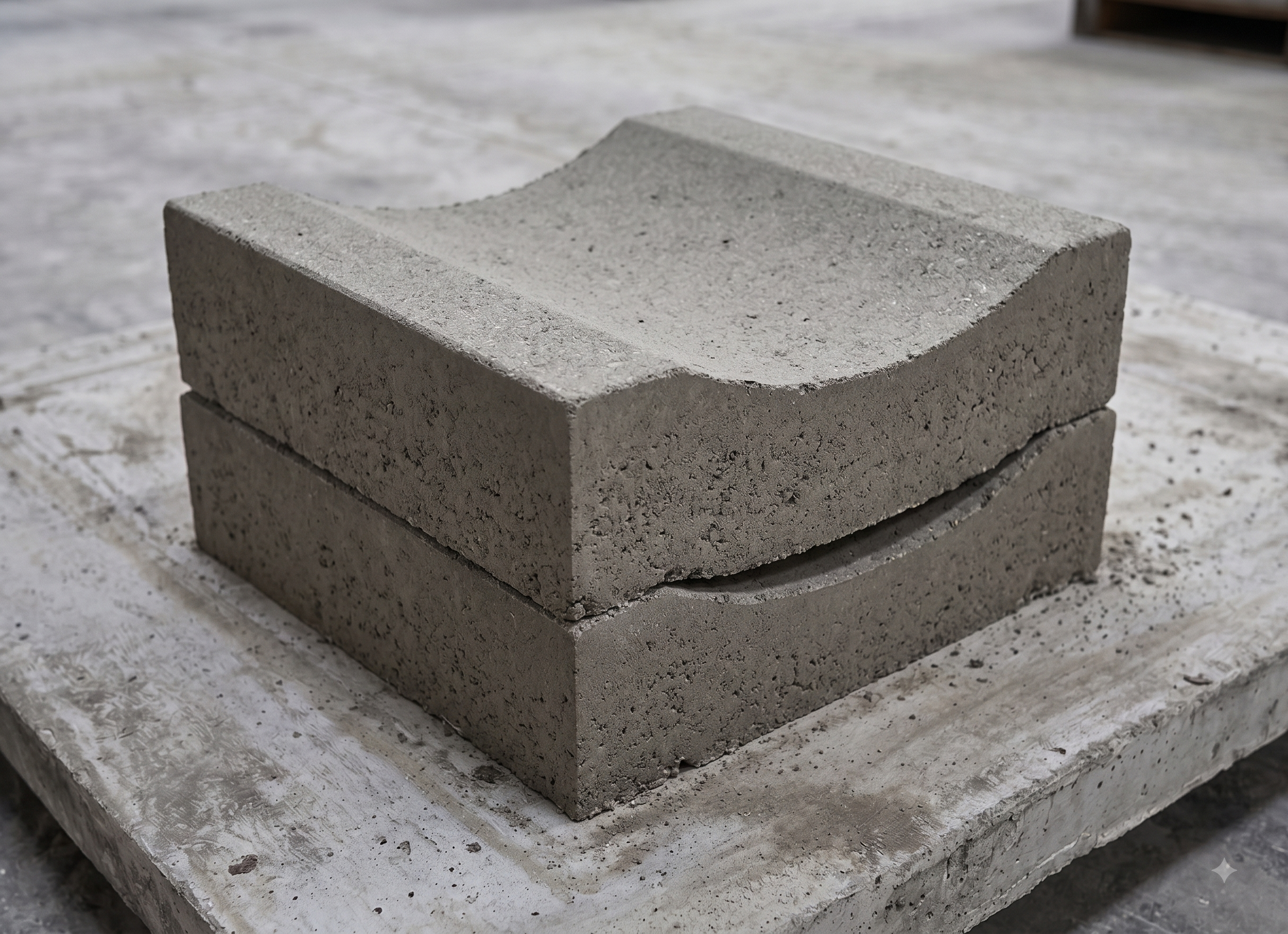

Saucer Drain

Reliable surface water management

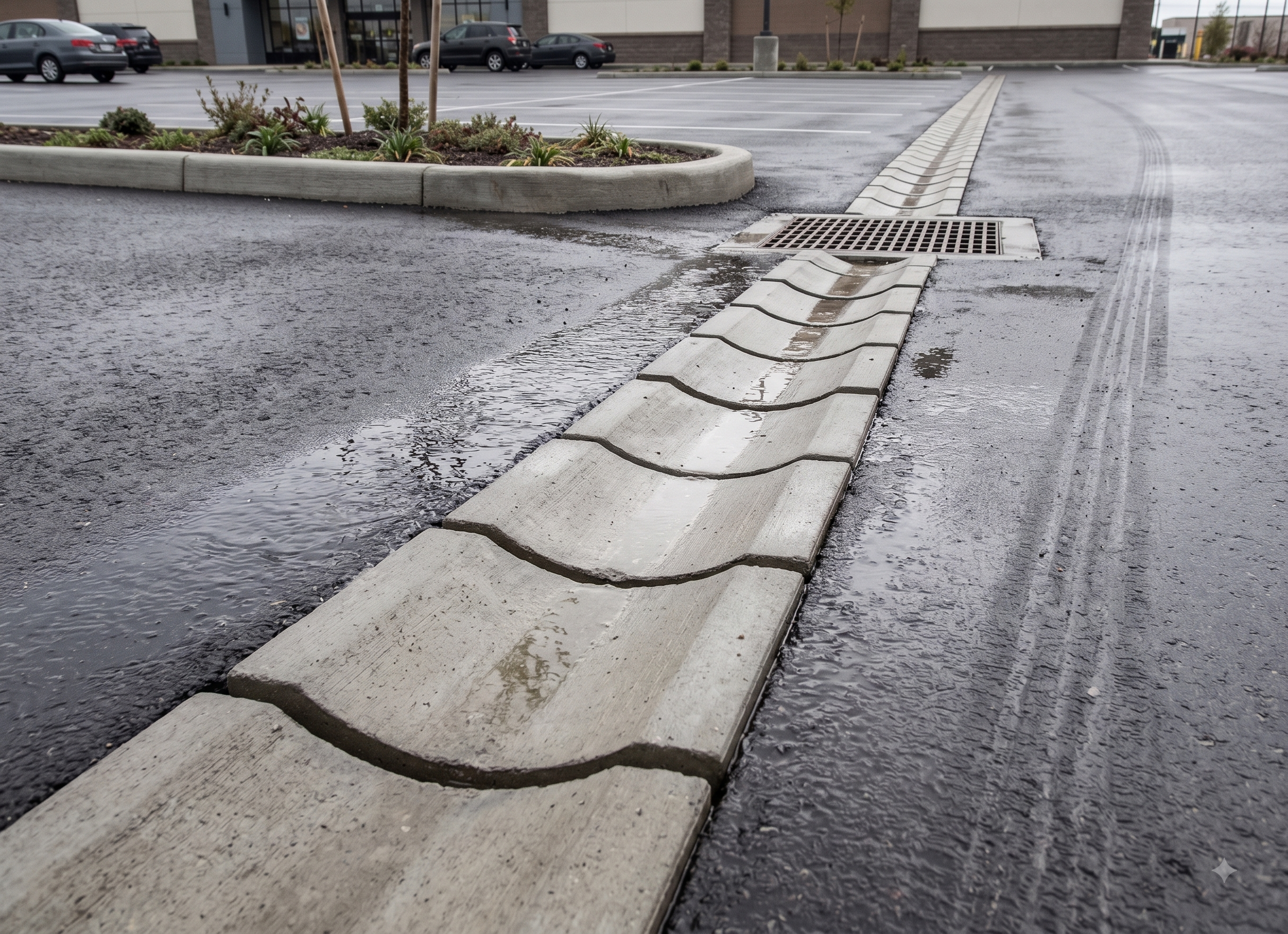

Shallow dish-shaped channels that carry rainwater off driveways and roads without trip hazards or grates to clog.

Specifications

Category
Kerbs & Drainage
Thickness / size
Standard saucer profile
Finish
Plain grey
Standard
Precast concrete, M-30 and above
Strength grade
Heavy-duty precast
Quality control
25 checks per batch, test report on request

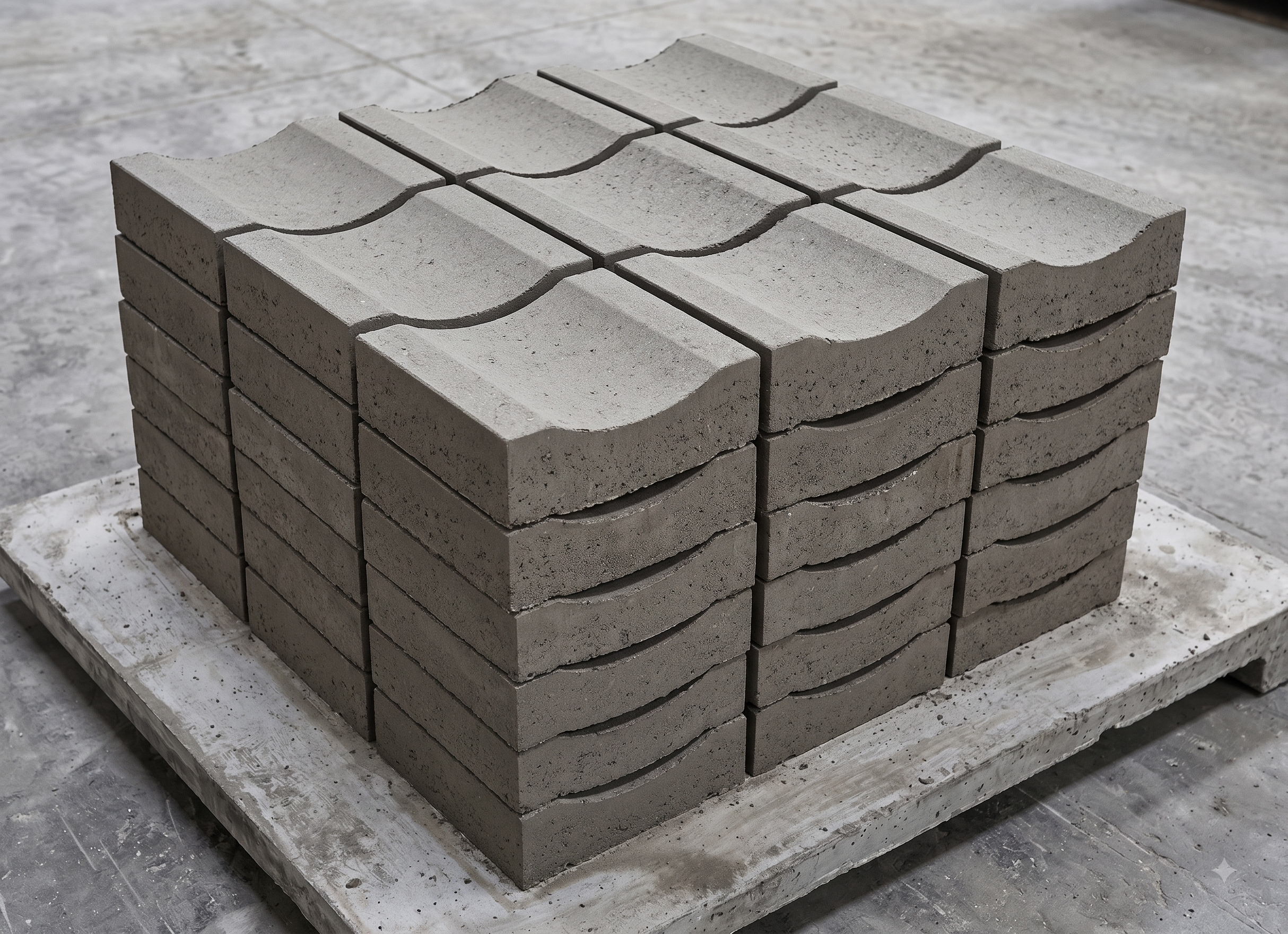

Packing & delivery
Palletised, crane-unloaded at site
Manufactured at
IMT Bawal, Haryana (own plant)

Delivered on our own crane-mounted trucks, 96%+ on time, unloaded at site with no labour needed. Supplier profile

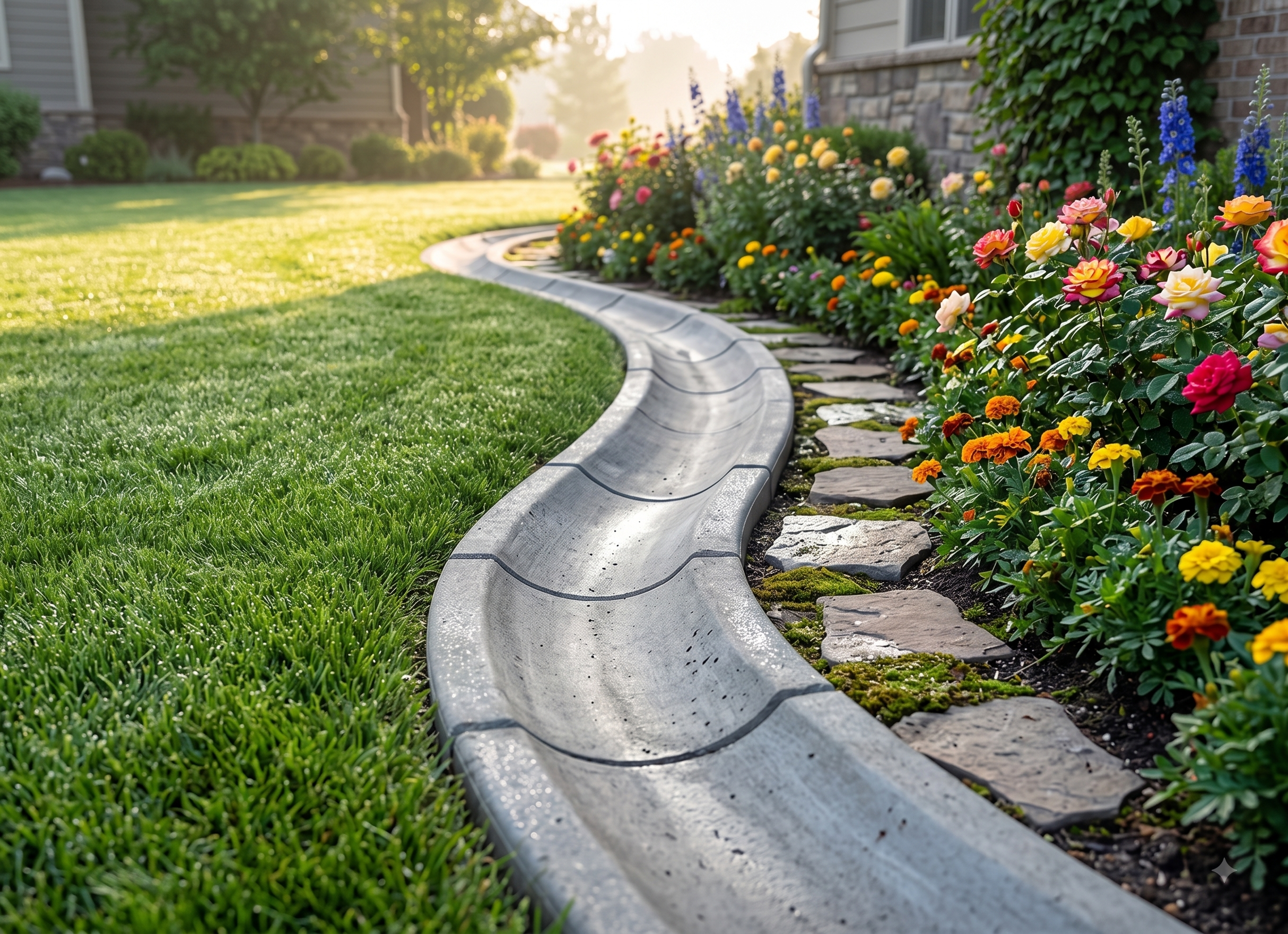

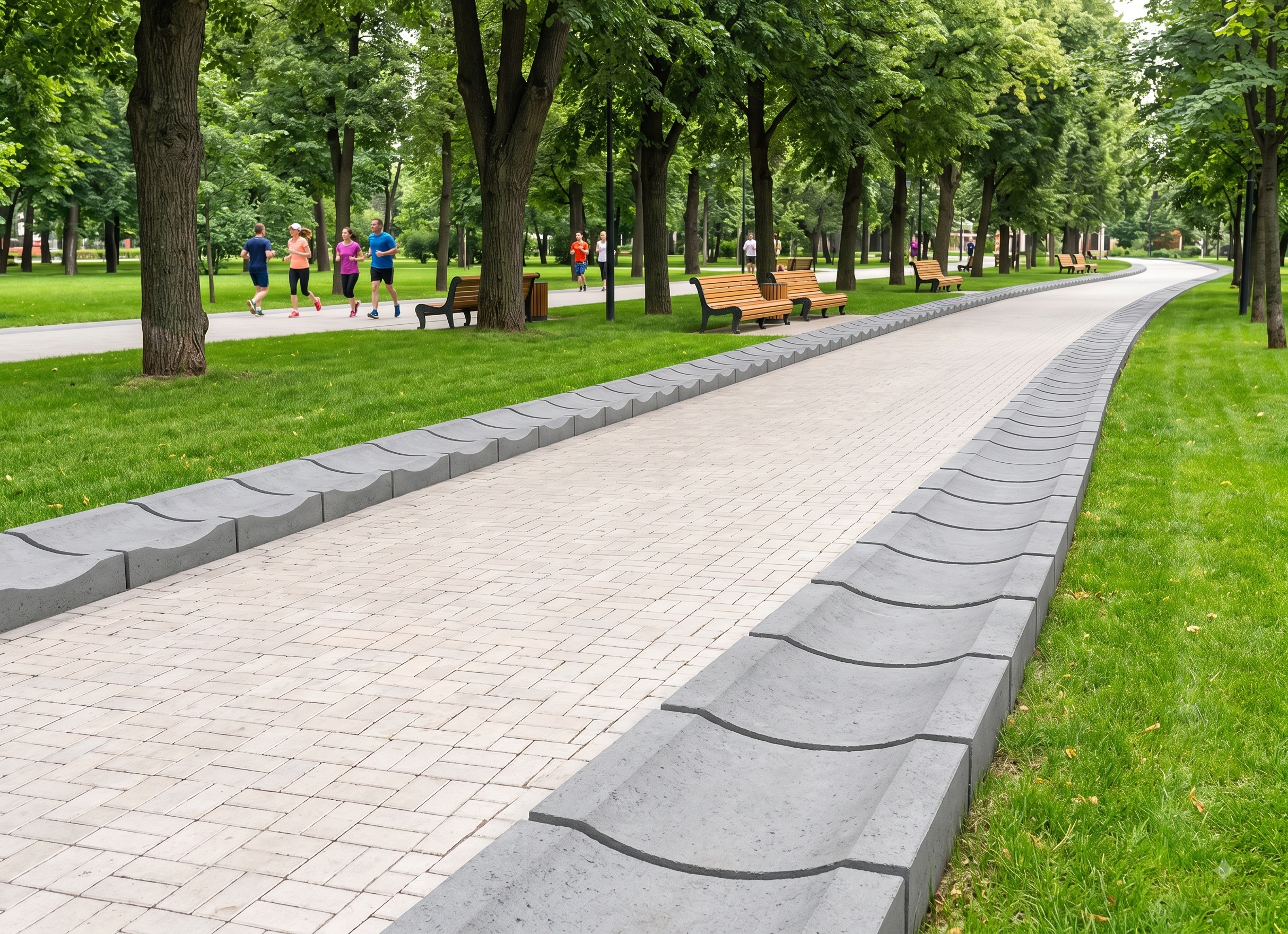

Best for

  • Driveway edges
  • Society roads
  • Parking lots
  • Campus pathways

Expert tip from our site team

Set saucer drains 5 mm lower than the adjoining pavers. Flush-set drains let water sit on the paving edge and undermine the sand bed.

Enquire about Saucer Drain on WhatsApp(opens WhatsApp)

Pricing, colours and delivery — usually answered same day.

Technical drawing

Saucer Drain dimensional layout

Plan views, saucer profile and drain line laying pattern for site planning and quantity take-offs. Manufactured to precast vibro-compacted concrete.

Saucer drain dimensional layout: plan views of 300x300, 600x300 and 600x450 mm units, saucer profile cross-sections with 75 mm dish depth, a 3D view, and a 2400 mm drain line laying pattern showing water flow direction(opens full-size drawing in a new tab)
All dimensions in millimetres. Click the drawing to view full size.

Key dimensions

Sizes
300×300 / 600×300 / 600×450 mm
Material
Precast concrete
Dish depth
75 mm (all sizes)
Finish
Vibro-compacted, shuttering-grade
Laying pattern
End-to-end drain line
